What Are Buttweld Fittings?

Buttweld fittings are essential components in piping systems, designed to create secure, leak-proof joints. These fittings are welded directly onto the pipe, forming a seamless connection that enhances the strength and reliability of the pipeline. Manufactured in a variety of shapes, sizes, and materials, buttweld fittings are versatile and suitable for critical applications in industries such as oil and gas, power generation, and water treatment.

Key Types

Elbows:

Change the direction of flow in a pipeline.
Available in 45°, 90°, and 180° configurations.

Reducers:

Connect pipes of different diameters, maintaining smooth flow.
Include concentric and eccentric designs.

Tees and Crosses:

Create branches or facilitate multi-directional flow.

Caps:

Seal the end of pipelines for maintenance or isolation.

Stub Ends:

Used with lap joint flanges for systems requiring frequent disassembly.

Advantages of Buttweld Fittings in Piping Systems

Seamless and Durable Connections

Welding eliminates the need for threads or bolts, ensuring a strong, continuous joint.
Ideal for high-pressure and high-temperature systems requiring long-term reliability.

Leak-Proof Joints

Welded connections provide a tight seal, reducing the risk of leaks even under extreme operating conditions.

High Strength and Resistance

Manufactured from materials like stainless steel, carbon steel, and alloy steel, buttweld fittings are resistant to corrosion, wear, and chemical attacks.

Optimized Flow Efficiency

Smooth interior surfaces minimize turbulence and pressure drops, ensuring efficient fluid or gas flow through pipelines.

Customization and Flexibility

Available in a range of sizes, schedules, and materials, including custom configurations for specialized applications.

Applications across Industries

Oil and Gas

Widely used in pipelines for offshore drilling, refineries, and petrochemical plants.
Withstand harsh conditions, including high pressures, extreme temperatures, and corrosive environments.

Power Generation

Essential in steam and cooling systems in thermal and nuclear power plants.
Capable of handling high-pressure steam and superheated fluids.

Chemical and Petrochemical

Designed for pipelines that transport volatile chemicals and corrosive fluids.
Provide reliable connections in reactors, processing units, and storage facilities.

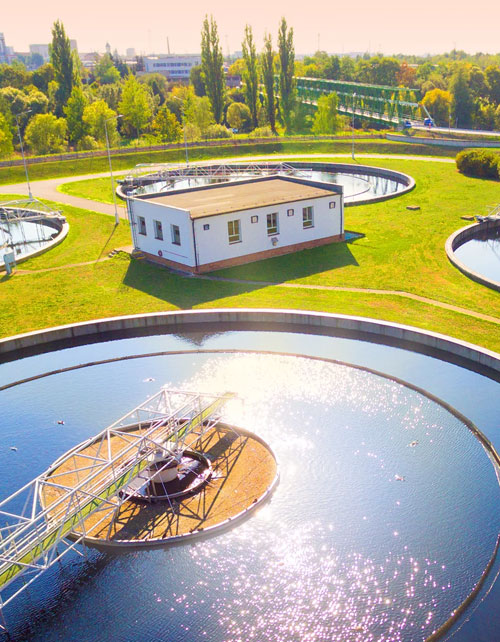

Water and Wastewater Treatment

Used in desalination systems and municipal water networks.
Resistant to chlorides and other contaminants, ensuring safe fluid transfer.

Food and Pharmaceutical Processing

Meet stringent hygiene and safety standards.
Ensure contamination-free and sanitary connections in food production and drug manufacturing systems.

Detailed Benefits of Butt weld Fittings

Buttweld fittings are known for their unmatched strength, seamless construction, and exceptional performance in industrial piping systems. Below is a detailed breakdown of the key benefits of buttweld fittings:

Leak-Proof Connections

Secure and Seamless Joints: Buttweld fittings are welded directly to the pipe, creating a continuous metal structure that minimizes potential leakage points. This seamless design ensures long-lasting, leak-proof connections.
Reduced Risk of Failures: The welded joints eliminate the need for threaded connections or gaskets, which are often weak points in piping systems.
Applications: Commonly used in high-pressure and high-temperature systems, including oil and gas pipelines, power generation plants, and chemical processing facilities.

Long Service Life

Corrosion Resistance: Constructed from materials such as stainless steel, duplex steel, and nickel alloys, buttweld fittings resist corrosion in aggressive environments like chemical plants and offshore installations.
Durability: The welding process enhances the structural integrity of the pipeline, making buttweld fittings less prone to wear and tear over extended periods.
High-Temperature Tolerance: Suitable for use in extreme temperature conditions, making them indispensable in steam pipelines and high-temperature fluid transport systems.
Applications: Ideal for industries like thermal power plants, offshore oil rigs, and industrial chemical processing where durability is critical.

Efficiency in Piping Systems

Improved Flow Characteristics: The smooth internal surface of buttweld fittings minimizes turbulence, pressure drops, and erosion, enhancing overall system efficiency.
Streamlined Transitions: Fittings like long-radius elbows and reducers ensure a gradual change in direction or pipe diameter, preventing abrupt flow interruptions.
System Optimization: Matching the fittings’ schedule and diameter to the pipe ensures uniformity and optimized performance throughout the pipeline.
Applications: Widely used in water treatment plants, food processing pipelines, and pharmaceutical manufacturing systems where consistent flow is essential.

Cost-Effectiveness

Lower Maintenance Costs: Welded joints provide a reliable, maintenance-free solution, reducing the need for frequent inspections or repairs.
Extended Lifespan: The robust construction of buttweld fittings means fewer replacements, offering long-term savings despite higher initial costs.
Material Savings: The precise welding process minimizes waste, making buttweld fittings a cost-effective choice for large-scale projects.
Applications: Frequently chosen for municipal water systems, industrial cooling systems, and large-scale infrastructure projects where efficiency and cost savings are priorities.

Enhanced Strength and Reliability

Seamless Construction: The welded connection forms a continuous metal structure, enhancing the overall strength and structural integrity of the pipeline.
Withstands High Pressures: Buttweld fittings are designed to endure high-pressure environments, making them ideal for critical systems like subsea pipelines and petrochemical plants.
Resistance to Mechanical Stress: Capable of handling vibrations, shocks, and dynamic loads without compromising structural integrity.
Applications: Commonly used in refineries, high-pressure steam systems, and heavy machinery pipelines.

Versatility

Broad Material Options: Available in a variety of materials, including carbon steel, stainless steel, and high-performance alloys, buttweld fittings meet the demands of diverse industries.
Customizable Designs: Can be tailored to specific needs, such as custom-radius elbows, specialty reducers, or unique configurations for complex piping systems.
Applications: Suitable for a wide range of industries, including chemical processing, food production, and power generation.

Environmental Benefits

Hygienic Operations: The seamless and smooth interior of buttweld fittings prevents debris buildup, ensuring contamination-free transport of fluids in industries like pharmaceuticals and food processing.
Sustainability: The extended lifespan of buttweld fittings reduces material waste, while many materials used are recyclable, supporting eco-friendly industrial practices.
Applications: Favored by industries focused on sustainability, including water treatment, renewable energy systems, and sanitary manufacturing.

Manufacturing Standards and Specifications for Buttweld Fittings

At Kwality Steelage Pvt. Ltd., our buttweld fittings are manufactured to the highest global standards, ensuring precision, durability, and compatibility with various industrial applications. These standards guarantee uniformity in dimensions, performance, and reliability, making them indispensable for critical pipeline systems in industries worldwide.

Key International Standards

ASME B16.9
Specifies the dimensions, tolerances, and requirements for factory-made wrought buttweld fittings.

MSS-SP-43
Covers lightweight corrosion-resistant fittings for use in low-pressure applications.

DIN 2605, 2615
German standards for elbows, tees, and reducers.

EN 10253
European standards for steel buttweld fittings, ensuring safety and performance in high-pressure environments.

ISO 9001
Certification for quality management systems to maintain manufacturing consistency.

EN 10204
Standards for material test certificates to verify chemical and mechanical properties.

Material Specifications and Grades

Carbon Steel

Grades:
- ASTM A234 WPB: Widely used in high-pressure applications for moderate temperatures.
- ASTM A420 WPL6: Designed for low-temperature systems, providing excellent toughness in sub-zero environments.
Applications:
- Commonly used in oil and gas pipelines, power plants, and industrial facilities requiring high strength.

Stainless Steel fittings

Grades:
- ASTM A403 WP304 and WP316: Known for their excellent corrosion resistance and mechanical properties.
- Duplex Grades (2205, 2507): Offer high strength, resistance to pitting, and excellent stress corrosion resistance.
Applications:
- Suitable for industries such as chemical processing, desalination, pharmaceutical, and food production.

Alloy and Nickel Alloys

Grades:
- Inconel 625: Ideal for high-temperature and high-corrosion environments.
- Hastelloy C276: Exceptional resistance to oxidizing and reducing agents.
- Monel 400: Used in marine applications and saltwater systems due to its excellent resistance to corrosion.
Applications:
- Chemical plants, offshore platforms, and high-performance heat exchangers.

Other Materials

Titanium:
- Lightweight yet highly corrosion-resistant, often used in aerospace, desalination, and biomedical industries.
Alloy Steel:
- Provides enhanced strength, toughness, and wear resistance, making it suitable for heavy-duty applications.

Types of Buttweld Fittings

Buttweld fittings are essential for connecting, redirecting, or sealing pipelines in high-pressure and high-temperature systems. These fittings are engineered to provide smooth flow transitions, robust connections, and durability for a variety of industrial applications. Available in a wide range of configurations, buttweld fittings ensure seamless integration into pipeline systems while enhancing their overall performance.

Directional Fittings

Directional buttweld fittings enable pipelines to change direction efficiently, maintaining optimal flow characteristics and minimizing turbulence.

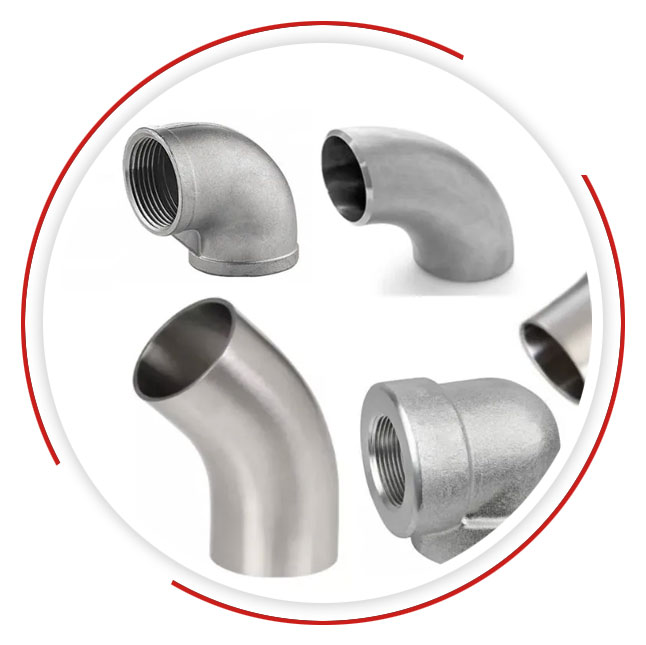

Elbows

Configurations:
- 45° Elbow: Facilitates a 45° directional change, often used in compact layouts or angled piping systems.
- 90° Elbow: Provides a 90° turn, ideal for connecting horizontal and vertical sections of a pipeline.
- 180° Elbow: Creates a U-shaped bend, enabling the fluid to reverse direction.
Applications:
- Used in industries like oil and gas, water treatment, and petrochemical for directional transitions.
- Suitable for systems requiring compact layouts or precise flow management.

Flow Control Fittings

Flow control buttweld fittings regulate the rate, direction, and pressure of fluids or gases, ensuring system efficiency and reliability.

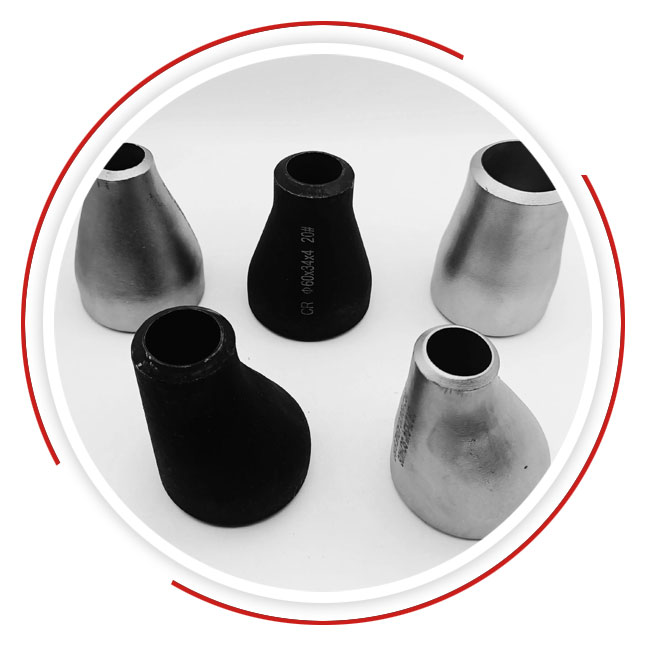

Reducers

Concentric Reducer:
- Uniformly reduces the pipe diameter while maintaining a consistent flow path.
- Common in vertical piping systems and high-pressure applications.
Eccentric Reducer:
- Off-center design prevents air accumulation, ideal for horizontal pipelines.
- Frequently used in pump suction lines to prevent cavitation.

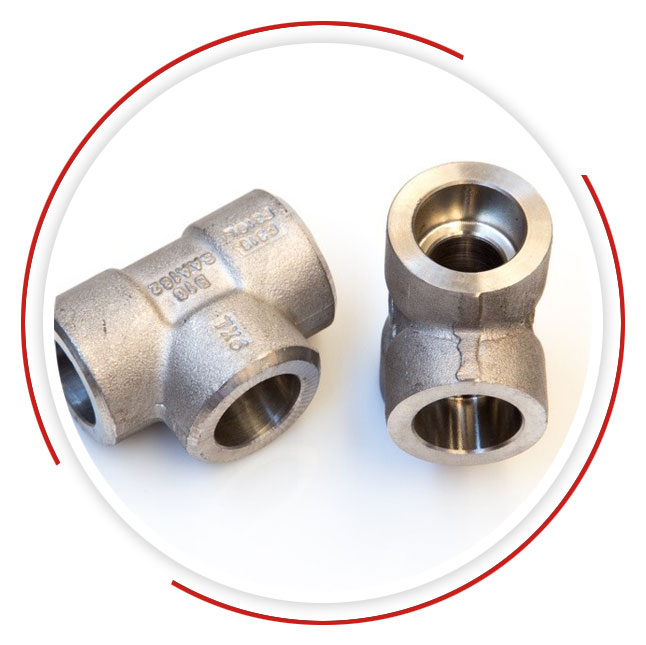

Tees

Equal Tee:
- Forms a 90° branch with the same diameter as the main pipe, ensuring balanced flow distribution.
Reducing Tee:
- Creates a smaller branch connection, useful for integrating auxiliary equipment or pipelines.

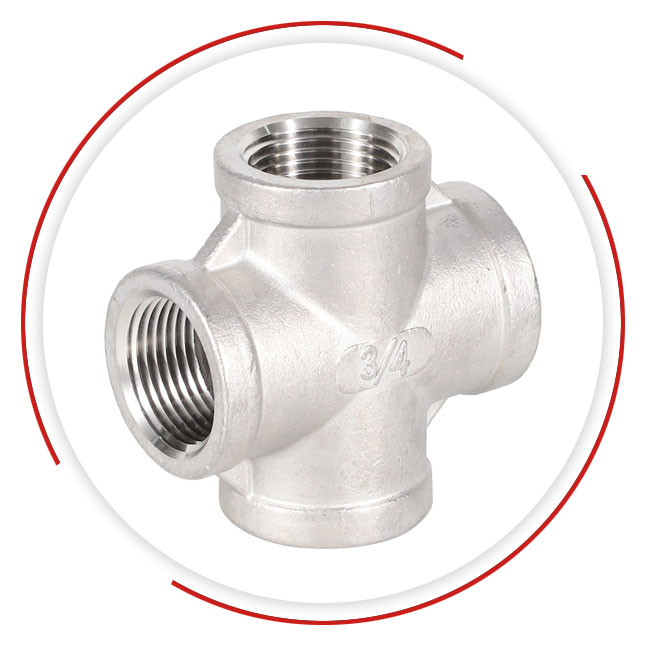

Crosses

Equal Cross:
- Links four pipelines of the same diameter in a cross-junction configuration.
Reducing Cross:
- Connects pipelines with varying diameters, often used in complex flow networks.

Sealing and Closure Fittings

These fittings are used to terminate pipelines or provide flexibility for assembly, disassembly, and maintenance.

Caps

Purpose:
- Permanently or temporarily seal the end of a pipeline.
- Protects against contamination or damage during maintenance or idle periods.
Applications:
- Frequently used in fluid storage systems and for isolating pipelines.

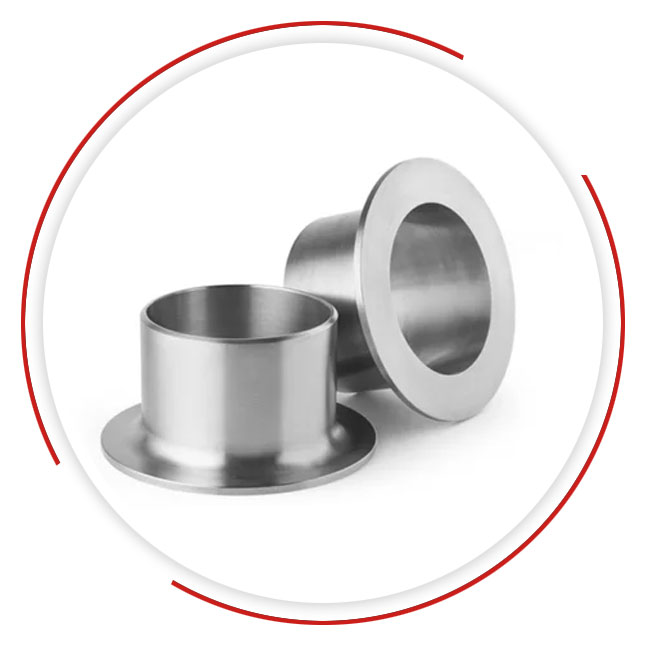

Stub Ends

Function:
- Designed for use with lap joint flanges, offering flexibility and ease of disassembly.
- Ideal for pipelines requiring frequent inspection or maintenance.

Specialty Buttweld Fittings

Specialty buttweld fittings are designed for unique industrial requirements, offering precision and performance in complex systems.

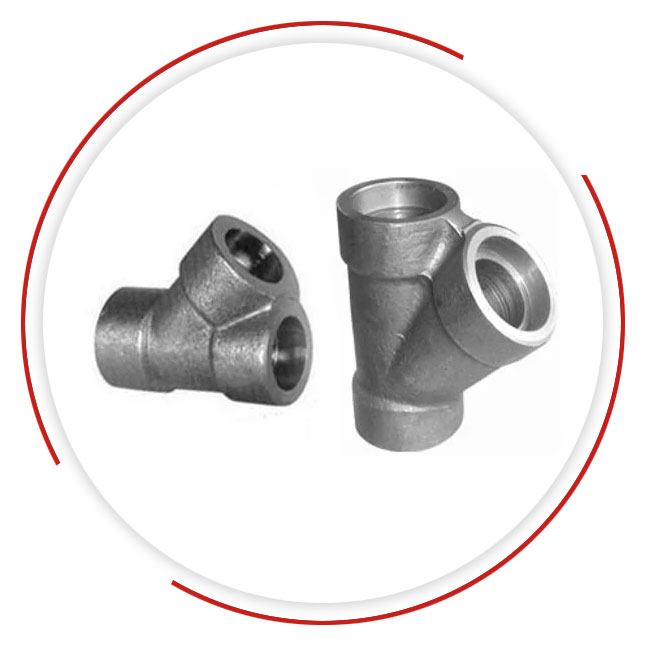

Laterals

Purpose:
- Provide a branch connection at a 45° angle, minimizing turbulence and optimizing flow distribution.
Applications:
- Common in high-efficiency systems requiring precise flow control.

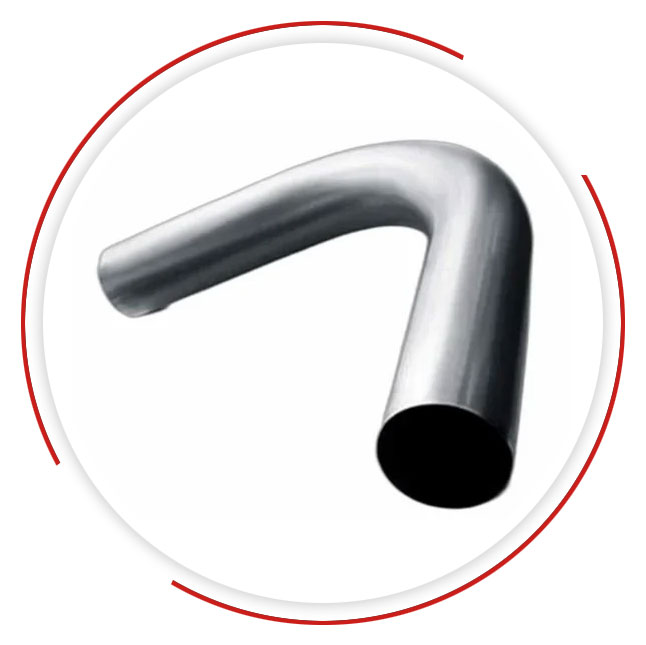

Piggable Bends

Function:
- Designed to allow cleaning or inspection tools to pass through the pipeline without interrupting operations.
Applications:
- Used in oil and gas pipelines and large industrial networks.

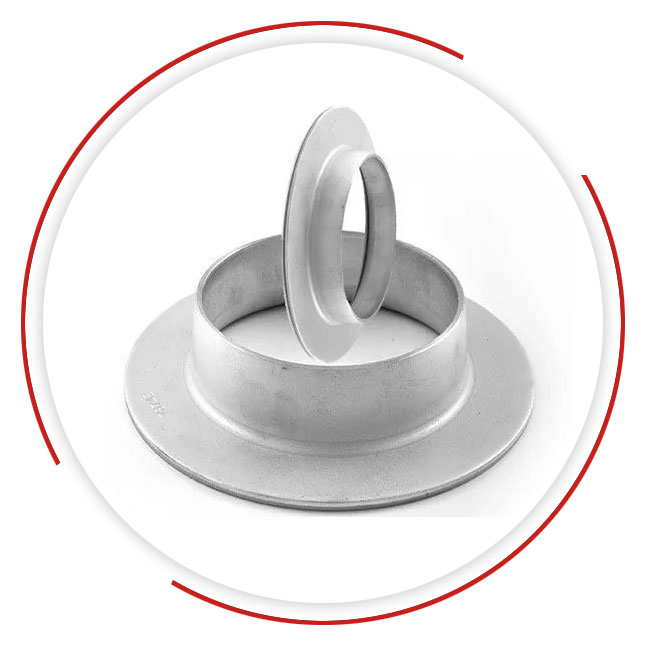

Collars

Uses:
- Reinforce pipeline joints or enhance the structural integrity of connections.
Applications:
- Commonly used in heavy-duty industrial systems and high-pressure pipelines.

Visual Summary of Buttweld Fittings

Type	Purpose	Key Applications
Elbows	Directional changes	Oil and gas, water treatment, petrochemical
Reducers	Control flow rates	Pump suction, vertical and horizontal pipelines
Tees and Crosses	Branching and multi-directional flow	Chemical plants, complex flow networks
Caps	Sealing pipeline ends	Fluid storage, protection, maintenance
Stub Ends	Flexible connections	Systems requiring frequent disassembly
Laterals	Smoother flow transitions	High-efficiency piping systems
Piggable Bends	Cleaning and inspection access	Oil and gas, industrial networks
Collars	Reinforcement of joints	Heavy-duty industrial systems

Material Grades and Properties of Buttweld Fittings

Choosing the correct material grade is essential for ensuring the durability, performance, and safety of buttweld fittings in industrial piping systems. These fittings are available in various materials, each offering specific advantages in strength, corrosion resistance, and temperature tolerance, making them ideal for diverse industrial applications.

Carbon Steel Buttweld Fittings

Common Grades

ASTM A234 WPB: A standard material for medium and high-pressure applications; widely used for its strength and cost-effectiveness.
ASTM A420 WPL6: Designed for low-temperature services, offering excellent toughness and reliability.

Applications

High-Pressure Pipelines: Ideal for oil and gas transmission lines, power plants, and refineries.
Low-Temperature Systems: Suitable for cryogenic applications in chemical and petrochemical industries.
Structural Components: Frequently used in load-bearing and high-stress applications.

Advantages

High tensile strength and durability.
Cost-effective for large-scale installations.
Excellent weldability and machinability, simplifying on-site fabrication.

Stainless Steel Buttweld Fittings

Austenitic Stainless Steels

304/304L: Versatile and corrosion-resistant, suitable for a broad range of applications.
316/316L: Enhanced with molybdenum for superior resistance to chloride-induced corrosion, ideal for marine environments.
321 and 347: Stabilized grades that resist intergranular corrosion after welding.

Duplex and Super Duplex Stainless Steels

2205 Duplex: High mechanical strength combined with excellent resistance to stress corrosion cracking.

Applications

Food and Beverage Processing: Used in sanitary pipelines for contamination-free fluid handling.
Marine and Offshore Applications: Provides robust resistance to saltwater corrosion.

Advantages

Outstanding corrosion resistance, including pitting and crevice corrosion.
Longevity in demanding environments with minimal maintenance.
High mechanical strength and ease of welding, ensuring seamless connections.

Alloy and Nickel Alloy Buttweld Fittings

Common Materials

Inconel:
- Grades 600, 625, 718: Known for exceptional oxidation and heat resistance in extreme environments.
- Applications: Aerospace, nuclear reactors, and high-temperature pipelines.
Monel:
- Grades 400, K500: Provides excellent resistance to seawater corrosion.
- Applications: Marine pipelines, pumps, and valves.
Hastelloy:
- Grades C22, C276: Handles highly corrosive environments effectively.
- Applications: Heat exchangers, scrubbers, and chemical processing plants.
Titanium:
- Grades 2, 5: Lightweight, strong, and highly resistant to corrosion.
- Applications: Desalination plants, aerospace systems, and medical devices.

Advantages

Exceptional corrosion resistance in aggressive chemical and marine environments.
High-temperature stability, making them ideal for extreme conditions.
Long service life with reduced maintenance requirements.

Comparative Chart: Properties and Applications

Material	Grade	Key Properties	Applications
Carbon Steel	ASTM A234 WPB	High strength, cost-effective	Oil, gas pipelines, structural applications
	ASTM A420 WPL6	Toughness in low temperatures	Cryogenic systems, petrochemical plants
Stainless Steel	304/304L	Versatile, corrosion-resistant	Food processing, pharmaceutical systems
	316/316L	Marine-grade, chloride resistance	Offshore platforms, chemical industries
	2205 Duplex	High strength, stress corrosion resistance	Desalination, pulp & paper
Nickel Alloys	Inconel 625	Heat and oxidation resistance	Aerospace, high-temperature pipelines
	Monel 400	Excellent seawater corrosion resistance	Marine systems, pumps
	Hastelloy C276	Chemical resistance to oxidizing agents	Chemical plants, heat exchangers
Titanium	Grades 2, 5	Lightweight, superior corrosion resistance	Aerospace, desalination

Dimensional Tolerances

ASME B16.9 and ASME B16.25 Guidelines

Tolerances: Applicable to key parameters, including outside diameter (OD), wall thickness, and center-to-end dimensions, ensuring precision in fabrication.
Beveled Ends:
- Purpose: Designed to facilitate full-penetration welding for leak-proof connections.
- Specifications:
  - Bevel Angle: 37.5° ± 2.5°.
  - Root Face Thickness: 1.6 mm ± 0.8 mm.

Key Tolerance Values

Outside Diameter (OD):
- For fittings ≤24 inches: ±1% of nominal OD or ±0.06 inches, whichever is greater.
- For fittings >24 inches: ±0.5% of nominal OD.
Wall Thickness:
- Minimum thickness should not be less than 87.5% of the nominal value.
- Variations are aligned with pipe schedules (SCH10, SCH40, SCH80, etc.).
Center-to-End Dimensions:
- ±1.5 mm for small sizes (up to 1½” NPS).
- ±3.0 mm for larger sizes (≥2” NPS).

Weight Specifications

Weight plays a vital role in load calculations, transportation, and overall pipeline design. The weight of buttweld fittings is influenced by their material density, dimensions, and wall thickness.

Weight Calculation Formula

Weight=π×(OD−Wall Thickness)×Wall Thickness× Length×Material Density\text{Weight} = \pi \times (\text{OD} – \text{Wall Thickness}) \times \text{Wall Thickness} \times \text{Length} \times \text{Material Density}Weight=π×(OD−Wall Thickness)× Wall Thickness×Length×Material Density

Material Densities

Carbon Steel: 7.85 g/cm³.
Stainless Steel: 8.0 g/cm³.
Nickel Alloys: 8.44 g/cm³ (approximate, varies with alloy composition).

Impact of Pipe Schedules on Weight

SCH10: Thin-walled and lightweight, used for low-pressure applications.
SCH40 and SCH80: Standard and heavy-duty thickness for moderate to high-pressure systems.
SCH160 and XXS: Extra thick walls for extreme pressure and temperature environments.

Pipe Sizes and Wall Thickness Options

Nominal Pipe Sizes (NPS)

Standard Range: ½” to 24” for most industrial applications.
Custom Sizes: Larger diameters (≥36”) are available for specialized projects requiring unique dimensions.

Wall Thickness (Based on Pipe Schedules)

SCH10 and SCH20: Suitable for low-pressure systems like HVAC and water pipelines.
SCH40 (STD): The most widely used thickness for general-purpose applications.
SCH80 (XS): Designed for higher pressure and temperature systems.
SCH160 and XXS: Ideal for systems requiring extreme pressure resistance and durability.

Applications of Dimensional and Weight Specifications

Design Precision

Ensures proper alignment of buttweld fittings with piping systems to minimize leaks and mechanical failures.
Precise tolerances guarantee compatibility across all pipeline components.

Load Calculations

Accurate weight measurements aid in designing support structures for large piping systems.
Facilitates efficient planning for transportation and installation in complex projects.

Customization

Tailored dimensions, such as 3D and 5D bends or non-standard wall thicknesses, are available for specialized applications.
Ideal for systems handling extreme pressures, temperatures, or corrosive environments.

Manufacturing Process of Buttweld Fittings

At Kwality Steelage Pvt. Ltd., we utilize cutting-edge manufacturing techniques to produce high-quality buttweld fittings that meet global standards. Every step in the manufacturing process is optimized for precision, durability, and compliance, ensuring that our products meet the rigorous demands of critical industrial applications.

Forming and Shaping Techniques

Hot Forming

Process:
- The metal is heated to temperatures exceeding 1,100°C to enhance malleability.
- Shaping is performed using high-pressure dies, presses, or rolling equipment to form elbows, tees, reducers, and other fittings.
Advantages:
- Refines the material’s grain structure, enhancing mechanical properties such as strength and toughness.
- Suitable for thick-walled fittings and complex geometries.
Applications:
- Commonly used for carbon steel and alloy steel buttweld fittings in high-stress systems.

Cold Forming

Process:
- Metal is shaped at room temperature using advanced techniques such as extrusion or bending.
Advantages:
- Retains material properties, especially in corrosion-resistant alloys like stainless steel.
- Produces fittings with superior dimensional accuracy and smooth surface finishes.
Applications:
- Ideal for precision fittings in industries like food processing and pharmaceuticals.

Beveling and Surface Finishing

Beveling

Purpose:
- All buttweld fittings feature beveled ends in compliance with ASME B16.25 standards to ensure strong and leak-proof welded connections.
Specifications:
- Bevel Angle: 37.5° ± 2.5°.
- Root Face Thickness: 1.6 mm ± 0.8 mm.

Surface Finishing

Processes:
- Polishing and Cleaning: Removes imperfections and prepares fittings for welding or coating.
- Coatings:
  - Electro-polishing: Enhances corrosion resistance in stainless steel fittings for hygienic applications.
  - Galvanizing/Epoxy Coating: Adds durability to carbon steel fittings, making them suitable for harsh environments.

Quality Assurance

Non-Destructive Testing (NDT)

Ensures defect-free fittings through comprehensive testing:
- Ultrasonic Testing (UT): Identifies internal flaws in the material.
- Radiographic Testing (RT): Inspects weld integrity and checks for internal defects.
- Dye Penetrant Testing (DPT): Highlights surface cracks or discontinuities.
- Magnetic Particle Testing (MPT): Detects flaws in ferromagnetic materials.

Material Test Certificates (MTC)

Provided as per EN 10204 3.1 or 3.2 standards, detailing:
- Chemical and mechanical properties of the material.
- Heat treatment records and compliance with global standards such as ASME and ASTM.

Dimensional and Visual Inspections

Each fitting is rigorously checked for:
- Dimensional accuracy as per ASME B16.9.
- Surface finish quality for smooth installation.
- Weld preparation precision for strong connections.

Third-Party Inspections

Independent auditors perform quality assessments to ensure that fittings meet critical application requirements, providing customers with confidence in their reliability.

Specific Industry Use Cases for Buttweld Fittings

Buttweld fittings are vital components in industrial pipeline systems, offering seamless connections, durability, and exceptional performance. Their adaptability to extreme conditions and ability to handle high-pressure and high-temperature environments make them indispensable in various industries where efficiency, safety, and reliability are critical.

Offshore and Subsea Pipelines

Challenges

Exposure to high salinity, immense pressure, and temperature fluctuations.
Fittings must resist corrosion and withstand mechanical stress.

Applications

Duplex and super duplex stainless steel buttweld fittings (e.g., ASTM A182 F51, F53) for subsea pipelines.
High-strength carbon steel buttweld fittings like ASTM A420 WPL6 for deep-sea oil and gas transmission.

Examples

Long-radius elbows: Smooth directional changes in underwater pipelines.
Piggable bends: Allow pipeline cleaning and inspection without disruption.
Equal tees and concentric reducers: Enable branching and diameter adjustments in offshore platforms.

Power Plants

Challenges

Extreme temperatures and high-pressure steam in power generation systems.
Materials must resist thermal fatigue and stress corrosion.

Applications

Carbon steel (ASTM A234 WPB) and alloy steel (ASTM A234 WP91) buttweld fittings for high-temperature steam pipelines.
Stub ends for easy disassembly in auxiliary piping systems.

Examples

90° elbows: Redirect steam flow in boilers and heat exchangers.

Eccentric reducers: Connect high-pressure steam lines to turbines efficiently.

Food and Beverage Processing

Challenges

Maintaining hygienic and contamination-free connections.
Smooth internal surfaces for easy cleaning and preventing material buildup.

Applications

Stainless steel (ASTM A403 WP304/316L) buttweld fittings with polished interiors for sanitary pipelines.
Compact short-radius elbows and reducers for small spaces in processing units.

Examples

Reducers and equal tees: Used in milk pasteurization and beverage production pipelines.

Pipe caps: Seal ends during cleaning and maintenance processes.

Chemical and Petrochemical Industries

Challenges

Handling highly corrosive chemicals and volatile compounds under high pressure and varying temperatures.

Applications

Nickel alloy buttweld fittings such as Inconel 625 and Hastelloy C276 for chemical environments.
Long-radius elbows and reducers to ensure smooth and secure connections in hazardous systems.

Examples

Long-radius elbows and crosses: Facilitate flow distribution in chemical reactors.

Piggable bends: Maintain pipeline cleanliness in hydrocarbon transport systems.

Water and Wastewater Treatment

Challenges

Managing large volumes of water containing chlorides and contaminants.
Preventing pipeline corrosion in chemically treated wastewater systems.

Applications

Carbon steel (ASTM A234 WPB) buttweld fittings for large-diameter municipal pipelines.
Duplex steel (ASTM A182 F51) fittings for wastewater systems with high chloride content.

Examples

Tees and reducers: Used in municipal water distribution and desalination plants.

Pipe caps and stub ends: Ensure secure terminations and easy maintenance.

Pharmaceutical and Biotechnology

Challenges

Meeting stringent sanitary standards for high-purity applications.
Preventing contamination in sensitive drug manufacturing processes.

Applications

Austenitic stainless steel (ASTM A403 WP316L) buttweld fittings with polished interiors for hygienic pipelines.
Stub ends for easy cleaning and validation in sterile systems.

Examples

Smooth-radius elbows: Enable sterile fluid transport in drug manufacturing.
Equal tees: Branch purified water systems efficiently.

Cryogenic Applications

Challenges

Handling extremely low temperatures in LNG and industrial gas transport systems.

Applications

Low-temperature carbon steel (ASTM A420 WPL6) and stainless steel buttweld fittings for cryogenic pipelines.
Concentric reducers and bends for liquid nitrogen or LNG transport systems.

Examples

Long-radius bends: Used in LNG liquefaction and storage pipelines.
Eccentric reducers: Prevent vapor lock in liquid oxygen systems.

Pulp and Paper Industry

Challenges

Managing abrasive materials and corrosive chemicals in pulp and paper processing.

Applications

Duplex stainless steel (ASTM A182 F51) and nickel alloy buttweld fittings for wear-resistant and corrosion-resistant pipelines.
Reducers and crosses for high-capacity flow systems.

Examples

Pipe tees and reducers: Transport pulp and chemicals efficiently.

Couplings and elbows: Handle abrasive materials in bleaching lines.

Pricing Factors and Cost Analysis for Buttweld Fittings

At Kwality Steelage, we provide competitive pricing for our buttweld fittings by utilizing efficient manufacturing practices and sourcing cost-effective materials. These fittings, designed for diverse industrial applications, are priced based on multiple factors that influence production, material selection, and market demand.

Key Factors Influencing Pricing

Material Composition

Carbon Steel:
- Affordable and widely used for general-purpose applications.
- Grades like ASTM A234 WPB and ASTM A420 WPL6 offer cost-effective solutions for high-pressure and low-temperature pipelines.
Stainless Steel:
- Higher resistance to corrosion, with costs rising for premium grades such as 316L and duplex steels (2205, 2507), ideal for harsh environments.
Alloy and Nickel Alloys:
- High-performance materials such as Inconel 625, Monel 400, and Hastelloy C276 command premium pricing due to their exceptional resistance to extreme conditions.
Special Coatings:
- Anti-corrosion finishes, such as epoxy coating or hot-dip galvanizing, can add 5–10% to the total cost.

Size and Dimensions

Pipe Sizes:
- Larger diameters (above 12”) require more raw material and labor, leading to higher costs.
Wall Thickness:
- Increased schedules (e.g., SCH80, SCH160) result in higher material usage and production requirements.
Custom Dimensions:
- Non-standard designs, such as 3D or 5D long-radius bends, incur additional costs for specialized production.

Manufacturing Process

Forging and Forming:
- Hot forming and cold forming processes enhance strength but involve higher energy and labor costs.
Welding Preparation:
- Beveled ends for welding, compliant with ASME B16.25, add to production complexity and costs.
Heat Treatment:
- Processes like normalization or stress-relieving improve mechanical properties but add to overall expenses.

Additional Treatments

Beveling and Polishing:
- Polished surfaces for stainless steel fittings enhance corrosion resistance and aesthetic appeal.
Surface Coatings:
- Galvanizing and epoxy coatings for carbon steel fittings increase durability and longevity in harsh environments.

Market and Demand

Raw Material Pricing:
- Fluctuations in global steel, nickel, and alloy markets directly impact production costs.
Energy and Labor:
- Regions with higher operational expenses lead to increased product pricing.
Supply Chain Efficiency:
- Effective logistics and local sourcing minimize costs, while disruptions can result in price surges.

Price Comparisons

Buttweld vs. Forged Fittings

Buttweld Fittings:
- Typically cost 10–20% less than forged fittings for large-scale projects, thanks to efficient production processes and seamless welding capabilities.
- Preferred for high-pressure and high-temperature pipelines where permanent connections are critical.
Forged Fittings:
- Higher cost due to labor-intensive forging processes but offer superior strength for compact systems.

Regional Pricing Trends

India:
- Competitive pricing, often 20–40% lower than Europe or North America, due to cost-efficient production.
Middle East:
- Slightly higher prices for corrosion-resistant fittings, driven by demand in oil and gas industries.
Europe and North America:
- Premium pricing due to stricter quality standards and higher labor costs, but local buyers benefit from reduced logistics expenses.
Asia-Pacific:
- Cost-effective manufacturing hub for carbon steel and stainless steel buttweld fittings.

Example Price Ranges

Type of Fitting	Material	Size	Schedule	Approx. Price (USD)
90° Long Radius Elbow	Carbon Steel (WPB)	2”	SCH40	2.50–3.00
Concentric Reducer	Stainless Steel (316L)	4”	SCH80	10.00–15.00
Equal Tee	Duplex Steel (2205)	6”	SCH40	50.00–60.00
Stub End (Long Pattern)	Inconel 625	8”	SCH160	200.00–300.00
Weld Cap	Carbon Steel (WPB)	12”	SCH10	20.00–30.00

Factors in Cost Optimization

Streamlined Manufacturing

Efficient processes reduce material waste and labor expenses.

Smart Material Selection

Choosing the appropriate grade ensures optimal performance without unnecessary costs.

Bulk Orders

Large quantities often come with significant discounts, lowering the per-unit cost for industrial buyers.

Coatings and Value-Added Services for Buttweld Fittings

At Kwality Steelage Pvt. Ltd., we provide a wide range of coatings and value-added services for buttweld fittings, enhancing their durability, performance, and customization to meet the diverse demands of industries worldwide. These services ensure that our fittings deliver long-lasting and reliable performance, even in the most challenging environments.

Anti-Corrosion Coatings

Protecting buttweld fittings from corrosion is crucial for extending their lifespan and ensuring performance in harsh environments such as offshore platforms, chemical processing plants, and high-humidity areas. The following coatings are commonly applied:

Epoxy Coating

Purpose: Forms a robust barrier against moisture, abrasion, and chemical attacks.
Applications: Commonly used in pipelines for offshore rigs, water treatment plants, and industrial cooling systems.
Advantages:
- Excellent resistance to UV exposure, wear, and impact.
- Smooth surface finish reduces flow friction, improving pipeline efficiency.
- Extends the lifespan of fittings in aggressive environments.
Process:
- The coating is applied as a liquid or powder and then cured to form a durable, protective layer.

Hot-Dip Galvanizing

Purpose: Coats carbon steel fittings with a protective zinc layer to prevent rust and corrosion.
Applications: Ideal for outdoor and marine applications, particularly in pipelines exposed to moisture and saltwater.
Advantages:
- Cost-effective and widely accessible.
- Sacrificial protection ensures that the base material remains intact, even when scratched.
- Effective for mild to moderately corrosive settings.
Process:
- Fittings are dipped in molten zinc, creating a uniform layer that coats all surfaces, including intricate sections.

Electro-Polishing

Purpose: Improves surface smoothness and corrosion resistance, making fittings suitable for hygienic environments.
Applications: Widely used in pharmaceutical, food processing, and biotechnology industries.
Advantages:
- Removes surface imperfections and reduces microbial adhesion, ensuring hygiene.
- Enhances corrosion resistance by eliminating irregularities.
- Provides a mirror-like finish, ideal for exposed or aesthetic installations.
Process:
- A controlled electrochemical process removes the outer metal layer, resulting in a polished, reflective surface.

Custom Fabrication

Customization ensures that buttweld fittings meet unique project requirements, providing precision, compatibility, and optimal performance.

Tailored Designs

Non-Standard Sizes: Custom dimensions and wall thicknesses to accommodate specific pipeline configurations.
Special Radius Bends: Production of 3D, 5D, and other custom-radius bends for complex flow systems.
Specialty Connections:
- Includes piggable bends, split tees, and collars designed for cleaning or creating branch connections without system disassembly.

Material Customization

Specific Grades: High-performance materials such as Inconel, Monel, Hastelloy, and titanium for extreme environments.
Dual Certification: Enhanced mechanical and chemical properties for demanding applications.

Welding and Assembly

Pre-Welded Assemblies: Reduces on-site installation time, ensuring seamless and secure connections.
Precision Machining:
- CNC machining ensures tight tolerances for custom designs.
- Beveled ends conform to ASME B16.25 standards for reliable, full-penetration welds.

Other Value-Added Services

Heat Treatments

Processes like annealing, normalizing, and stress-relieving improve the mechanical strength and toughness of buttweld fittings.
Essential for fittings used in high-pressure and high-temperature systems.

Internal Linings

Purpose: Linings such as PTFE or rubber enhance chemical resistance and prevent corrosion in aggressive media.
Applications: Ideal for petrochemical, pharmaceutical, and food processing pipelines.

Color Coding and Marking

Enables easy identification of material grades, schedules, and end types.
Adheres to industry color-coding standards for efficient inventory management and installation.

Benefits of Coatings and Value-Added Services

Extended Durability

Coatings and linings protect against corrosion, wear, and environmental damage, significantly extending the lifespan of buttweld fittings.

Enhanced Performance

Customization and precise machining ensure fittings optimize system efficiency and minimize maintenance needs.

Cost Savings

Prevents premature failures, reducing downtime and replacement expenses

Regulatory Compliance

Guarantees adherence to project specifications and global standards

Improved Aesthetic Appeal

Polished and coated fittings are ideal for exposed applications or hygienic environments.

Comparison of Buttweld Fittings with Other Pipe Fitting Types

Buttweld fittings are widely recognized for their seamless construction, durability, and versatility in high-pressure and high-temperature pipeline systems. This section compares buttweld fittings with other types, such as threaded, socket weld, and forged fittings, highlighting their unique advantages, use cases, and differences.

1. Buttweld Fittings vs. Threaded Fittings

Overview

Buttweld fittings and threaded fittings serve distinct purposes in piping systems. While threaded fittings are commonly used in low-pressure, low-temperature environments, buttweld fittings are preferred for critical systems requiring long-term reliability and performance.

Key Differences

Feature	Buttweld Fittings	Threaded Fittings
Strength	Superior due to welded connections.	Limited strength due to threads.
Durability	Resistant to wear and mechanical stress.	Prone to wear and leakage over time.
Leak Resistance	Welded joints ensure zero leakage.	Threads may leak under vibration or high pressure.
Size Range	Suitable for sizes from ½” to 72”.	Commonly used for small sizes (up to 4”).
Applications	High-pressure, critical environments.	Domestic plumbing and cooling systems.
Installation	Requires skilled welding.	Easy to install and disassemble.
Cost	Higher initial cost but long-term savings.	Lower initial cost but higher maintenance expenses.

Use Cases

Buttweld Fittings:

Critical industrial pipelines in petrochemical plants and refineries.
High-capacity water treatment and distribution systems.

Threaded Fittings:

Domestic water supply pipelines.
Low-pressure systems in small-scale industrial applications.

2. Buttweld Fittings vs. Socket Weld Fittings

Overview

Socket weld fittings and buttweld fittings are both designed for permanent installations, but their applications differ. Socket weld fittings are ideal for small-bore pipelines, while buttweld fittings are the preferred choice for larger diameters and more complex systems.

Key Differences

Feature	Buttweld Fittings	Socket Weld Fittings
Strength	Superior due to seamless construction.	Strong but limited to small sizes.
Leak Resistance	Welded connections ensure no leakage.	Vulnerable to minor leaks at joints.
Size Range	Suitable for ½” to 72” diameters.	Ideal for small-bore pipelines (≤4”).
Applications	High-capacity, critical pipelines.	Small-diameter, high-pressure systems.
Cost	Higher due to precision welding.	Lower initial cost.
Corrosion Resistance	Smooth, crevice-free interior minimizes corrosion.	Vulnerable to crevice corrosion at joints.
Ease of Installation	Requires skilled welding.	Easier alignment and installation.

Advantages of Buttweld Fittings

Seamless Connections:
Welded joints provide strength and durability, even in extreme conditions.

Versatility:
Suitable for a wide range of sizes and pressure classes.

Reduced Corrosion Risks:
Smooth internal surfaces prevent debris buildup and crevice corrosion.

Use Cases

Buttweld Fittings:

High-pressure steam pipelines in power plants.
Chemical transport pipelines requiring corrosion resistance.

Socket Weld Fittings:

Small-bore industrial pipelines.
Gas transport lines requiring quick and secure installation.

3. Buttweld Fittings vs. Forged Fittings

Overview

Buttweld fittings and forged fittings cater to different pipeline needs. While forged fittings excel in small-diameter applications, buttweld fittings are the preferred choice for large-diameter systems requiring seamless connections and high structural integrity.

Key Differences

Feature	Buttweld Fittings	Forged Fittings
Strength	Superior due to welded connections.	High, due to forged construction.
Size Range	Best for sizes ranging from ½” to 72”.	Limited to smaller sizes (≤4”).
Leak Resistance	Seamless, leak-proof joints.	Excellent when welded but limited in threaded designs.
Durability	Long-lasting, resistant to mechanical stress.	Durable but designed for compact systems.
Applications	Large-scale, critical pipelines.	High-pressure, small-bore systems.
Cost	Higher initial investment with long-term savings.	Lower material cost but higher maintenance.

Use Cases

Buttweld Fittings:

Petrochemical and oil refineries for large-diameter pipelines.
Municipal water supply systems requiring high-capacity flow.

Forged Fittings:

Compact systems in chemical processing.
High-pressure small-bore pipelines in power plants.

Why Choose Buttweld Fittings?

Buttweld fittings offer unmatched strength, durability, and versatility for large-diameter and high-capacity piping systems. Their seamless construction and resistance to extreme conditions make them a reliable choice for industries worldwide.

Key Benefits

Seamless Welded Connections:
Ensures leak-proof performance in high-pressure and high-temperature environments.

Wide Size Range:
Accommodates a broad range of diameters, making it ideal for diverse industrial needs.

Corrosion Resistance:
Smooth internal surfaces minimize corrosion risks and improve flow efficiency.

Cost-Effectiveness:
While the initial cost is higher, their durability and low maintenance requirements provide excellent long-term value.

Our Global Supply and Distribution of Buttweld Fittings: Kwality Steelage Pvt. Ltd., Mumbai, India

Kwality Steelage Pvt. Ltd., based in Mumbai, is a premier global supplier of buttweld fittings, playing a vital role in establishing India as a leader in the international piping industry. Leveraging cutting-edge manufacturing capabilities, robust distribution networks, and strategic export practices, we cater to industries across the Middle East, Europe, Asia, and beyond.

1. Manufacturing Excellence: India’s Leading Supplier

State-of-the-Art Infrastructure

Advanced Facilities: Situated in Mumbai’s industrial hub, Kwality Steelage employs the latest machinery and a skilled workforce to produce high-precision buttweld fittings.
Global Certifications: Our products comply with international standards such as ASME B16.9, ASTM, and ISO, ensuring unmatched reliability and acceptance worldwide.
Stringent Quality Controls: Each fitting undergoes rigorous testing to meet dimensional accuracy, material integrity, and performance benchmarks, adhering to the highest industry standards.

Diverse Product Offerings

Comprehensive Solutions: Kwality Steelage offers a wide range of buttweld fittings, including elbows, tees, reducers, caps, and specialty fittings in materials like carbon steel, stainless steel, duplex, and high-performance alloys.
Custom Specifications: Our fittings are manufactured in various sizes, schedules, and configurations to meet standards like MSS-SP-43 and EN10253.
Competitive Pricing: Utilizing cost-effective production methods and economies of scale, we deliver premium products at affordable prices, meeting the needs of both small-scale and bulk orders.

2. Global Export Capabilities

Middle East

Industry Leader: A major portion of our exports supports the oil and gas sectors in the Middle East, where buttweld fittings must endure extreme desert heat and corrosive offshore environments.
Client Markets: Saudi Arabia, UAE, Qatar, and Oman rely on our durable and high-performance fittings.

Europe

Stringent Standards: European industries depend on our buttweld fittings for applications in petrochemical plants, power generation, and municipal water treatment systems.
Certifications: Products are fully compliant with EN 10204 3.1/3.2, CE marking, and REACH regulations, ensuring smooth integration into European projects.

Asia

Industrial Growth: Countries like China, Japan, South Korea, and Southeast Asia use Kwality Steelage products for chemical processing, infrastructure development, and shipbuilding.
Infrastructure Development: Our fittings are trusted for large-scale construction and engineering projects across Asia.

3. Strategic Advantages in Export

Middle Efficient Logistics and Supply Chains

Port Access: Proximity to major Indian ports like Nhava Sheva (Mumbai), Mundra, and Chennai facilitates smooth export operations.
Freight Partnerships: Collaborations with leading freight carriers ensure safe and timely delivery of buttweld fittings worldwide.

Custom Packaging Solutions

Secure Packaging: Products are securely packed in wooden boxes, crates, and pallets to protect against damage during transit, adhering to international shipping norms.

Compliance with Import Regulations

Streamlined Customs: We provide all necessary documentation, including Certificates of Origin, material test reports, and third-party inspection certificates, to ensure hassle-free customs clearance.

4. India’s Competitive Edge in the Global Market

Skilled Workforce

Our team of expert engineers and technicians delivers precision-engineered buttweld fittings that meet global quality standards, ensuring defect-free production.

Sustainability Practices

Committed to eco-friendly manufacturing, Kwality Steelage incorporates renewable energy, waste recycling, and environmentally compliant coatings, appealing to clients prioritizing sustainability.

Customizable Offerings

Tailored Solutions: We provide fittings in unique material grades, dimensions, and finishes, including value-added services like epoxy coating, electro-polishing, and custom packaging to suit specific project requirements.

5. Supporting International Projects

Mega Infrastructure Projects

Global Contributions: Kwality Steelage buttweld fittings are essential components in major projects, including:
- LNG pipelines and storage facilities in Europe.
- Desalination plants and municipal water systems in Asia.
Industry Expertise: Our products are engineered to meet the stringent demands of critical applications in refineries, offshore facilities, and power generation plants.

Strategic Partnerships

We maintain long-term relationships with global EPC companies, distributors, and contractors, strengthening our role as a trusted supplier in the international pipeline industry.

Why Choose Kwality Steelage Pvt. Ltd.?

Reliability: Over a decade of excellence in manufacturing and exporting buttweld fittings.
Customization: Tailored solutions designed to meet unique project specifications.
Global Expertise: Trusted worldwide for quality, performance, and service.
Certifications: All products are backed by EN 10204 3.1/3.2 certificates and validated through third-party inspections.

Related Products

Socket Weld Fittings

Forged Fittings

Partner with Kwality Steelage Pvt. Ltd. for premium-quality buttweld fittings tailored to your industrial needs. Contact us today for competitive pricing and reliable global delivery!

Buttweld Fittings

Table of Contents

Table of Contents

Call Us

Email Us

What Are Buttweld Fittings?

Key Types

Advantages of Buttweld Fittings in Piping Systems

Applications across Industries

Detailed Benefits of Butt weld Fittings

Leak-Proof Connections

Long Service Life

Efficiency in Piping Systems

Cost-Effectiveness

Enhanced Strength and Reliability

Versatility

Environmental Benefits

Manufacturing Standards and Specifications for Buttweld Fittings

Key International Standards

Material Specifications and Grades

Carbon Steel

Stainless Steel fittings

Alloy and Nickel Alloys

Other Materials

Types of Buttweld Fittings

Directional Fittings

Elbows

Flow Control Fittings

Reducers

Tees

Crosses

Sealing and Closure Fittings

Caps

Stub Ends

Specialty Buttweld Fittings

Laterals

Piggable Bends

Collars

Visual Summary of Buttweld Fittings

Material Grades and Properties of Buttweld Fittings

Carbon Steel Buttweld Fittings

Common Grades

Applications

Advantages

Stainless Steel Buttweld Fittings

Austenitic Stainless Steels

Duplex and Super Duplex Stainless Steels

Applications

Advantages

Alloy and Nickel Alloy Buttweld Fittings

Common Materials

Advantages

Comparative Chart: Properties and Applications

Dimensional Tolerances

ASME B16.9 and ASME B16.25 Guidelines

Key Tolerance Values

Weight Specifications

Weight Calculation Formula

Material Densities

Impact of Pipe Schedules on Weight

Pipe Sizes and Wall Thickness Options

Nominal Pipe Sizes (NPS)

Wall Thickness (Based on Pipe Schedules)

Applications of Dimensional and Weight Specifications

Design Precision

Load Calculations

Customization

Manufacturing Process of Buttweld Fittings

Forming and Shaping Techniques

Hot Forming

Cold Forming

Beveling and Surface Finishing

Beveling

Surface Finishing

Quality Assurance

Non-Destructive Testing (NDT)

Material Test Certificates (MTC)

Dimensional and Visual Inspections

Third-Party Inspections

Specific Industry Use Cases for Buttweld Fittings
