In-Depth Guide: Choosing the Right Flange Type for Your Application
Flanges are essential components in piping systems, offering robust connections for pipes, valves, pumps, and other equipment. Kwality Steelage, a leading manufacturer and exporter of industrial flanges, delivers high-quality solutions designed to meet international standards like ASME and MSS. Our flanges ensure durability, reliability, and seamless integration into diverse industrial applications.
Selecting the right flange type is critical for the performance, safety, and longevity of your piping systems. This guide explains each flange type in detail, highlights its uses and applications, and explores how standards and materials impact their performance. Let’s dive in!

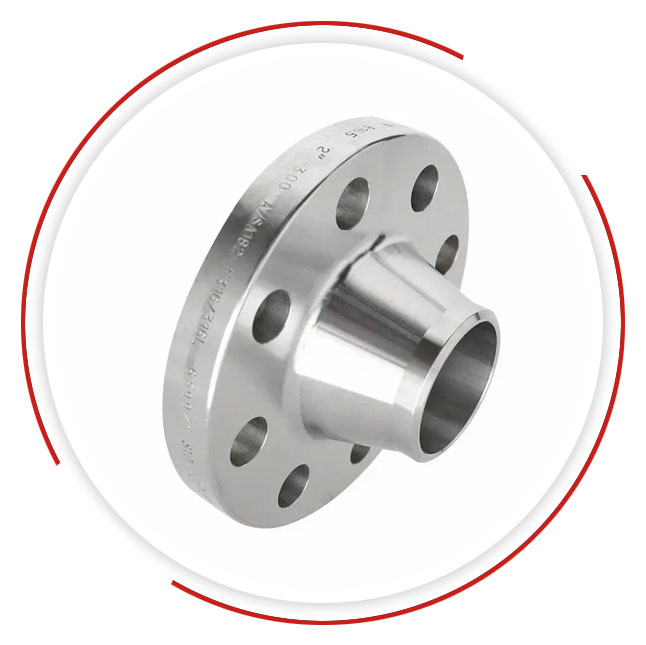

Designed for high-pressure and high-temperature systems, Weld Neck Flanges offer superior strength and durability. The tapered neck design evenly distributes stress, reducing the risk of failure in critical applications.

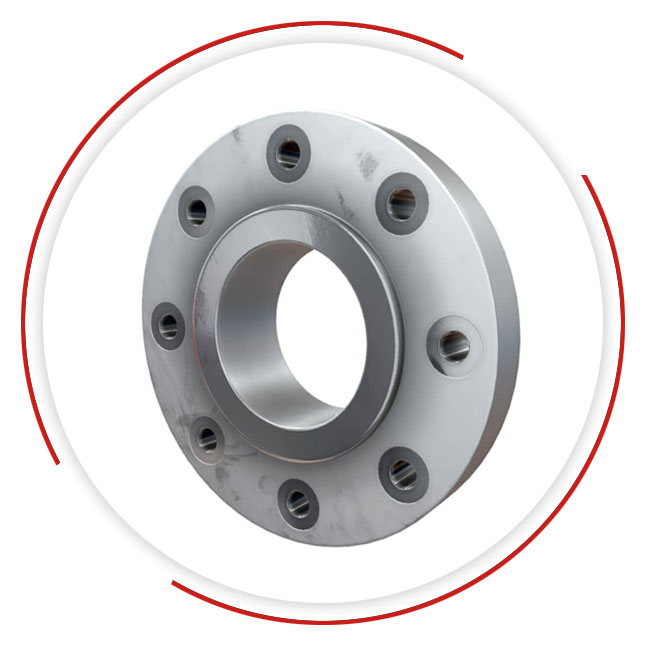

Slip-On Flanges are simple to install and ideal for systems requiring low to moderate pressure handling. They slip over the pipe and are welded for a secure connection.

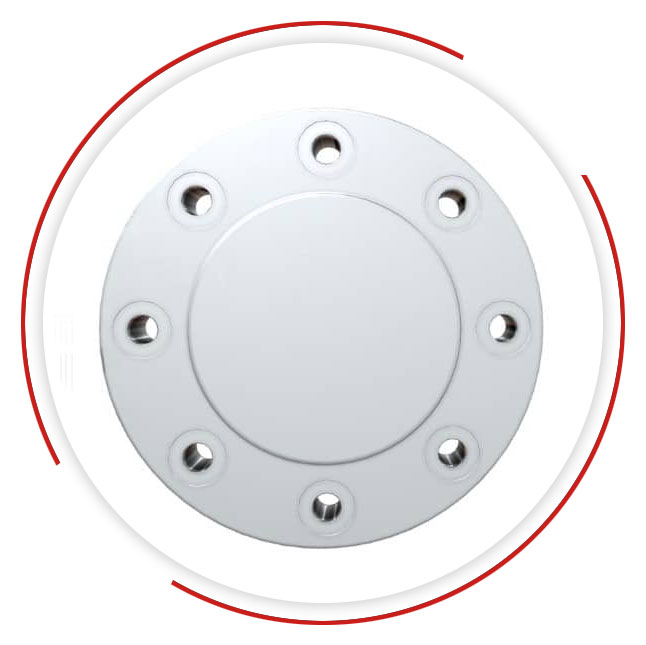

Blind Flanges are solid disks used to block the end of pipelines or vessels. They provide excellent sealing capabilities and can withstand high-pressure conditions.

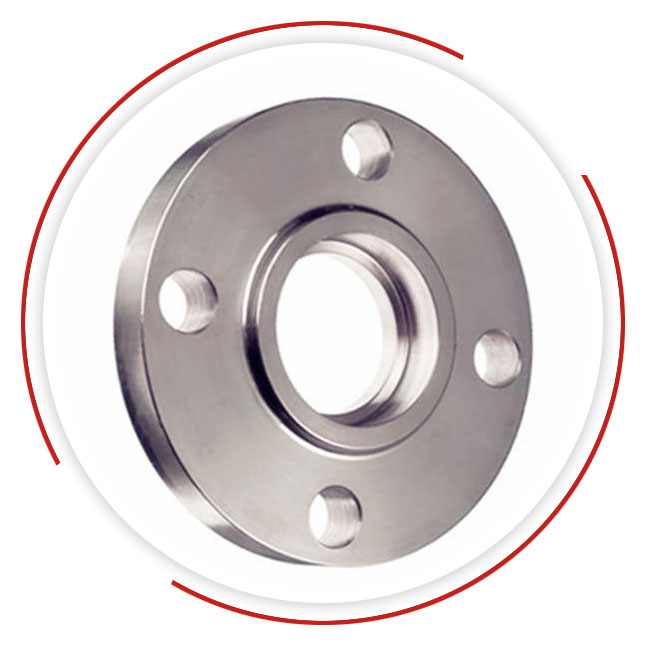

Socket Weld Flanges are preferred for smaller piping systems under high pressure. Their design ensures leak-proof connections with only a single weld.

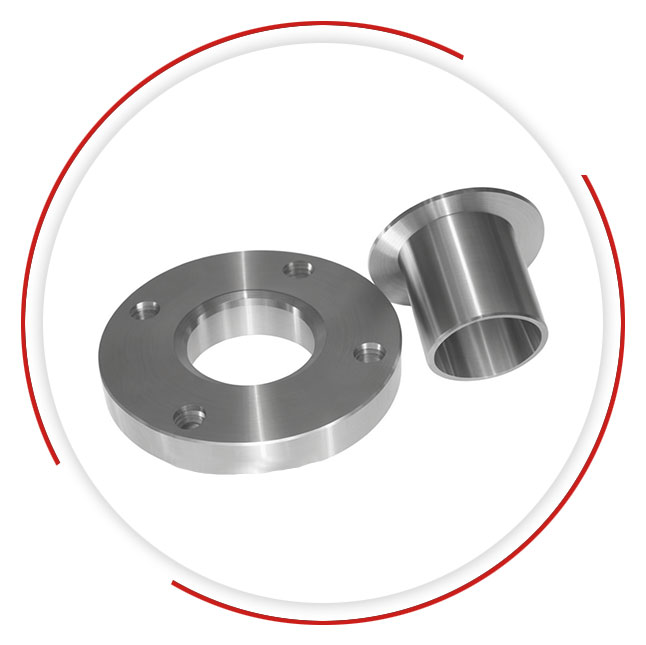

Lap Joint Flanges consist of two parts—a backing flange and a stub end. They’re easy to align and are cost-effective when used with expensive pipes.

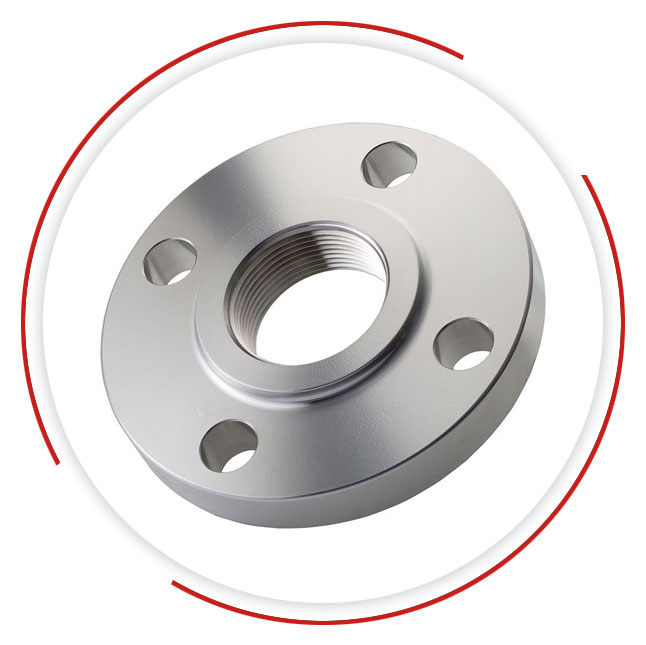

Threaded Flanges are ideal for applications where welding is impractical or prohibited. They screw onto the pipe, ensuring a secure fit without additional welding.

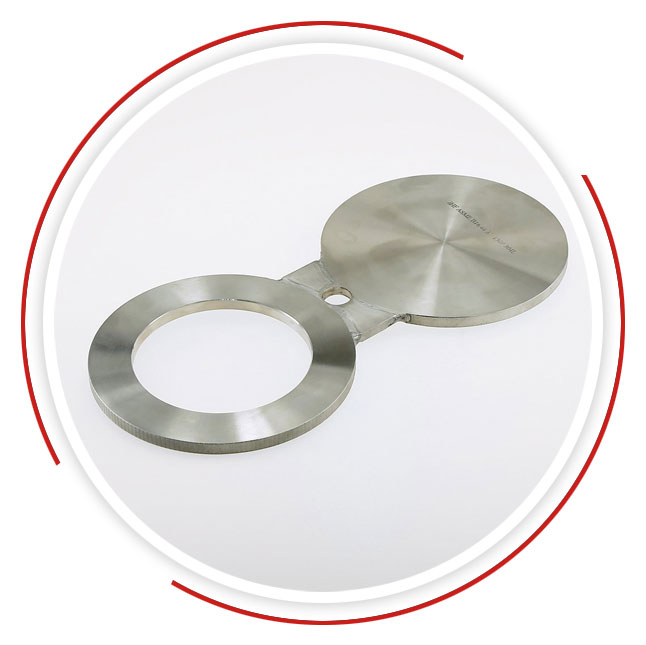

Spectacle blind flanges are essential components for controlling and isolating flow in industrial piping systems. With their unique figure-eight design.

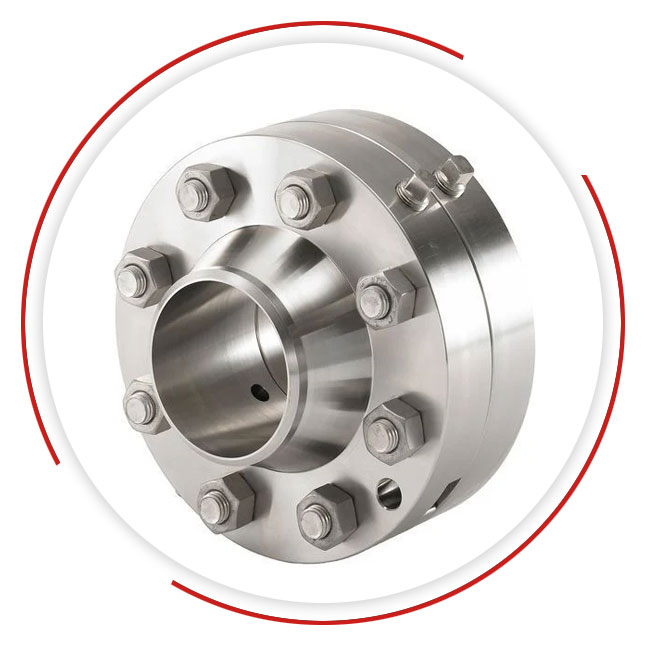

Orifice flanges are specially designed components used in piping systems for accurate flow measurement and control.

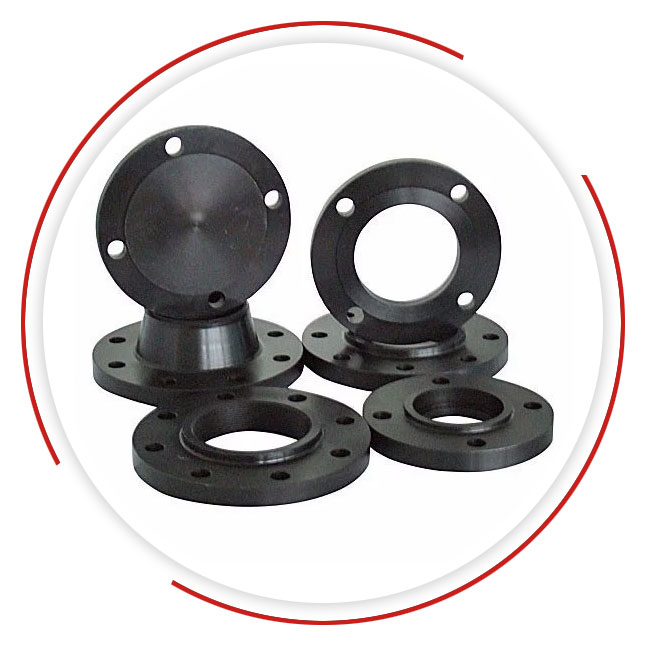

Carbon Steel Flanges are known for their strength and toughness, making them suitable for high-pressure systems.

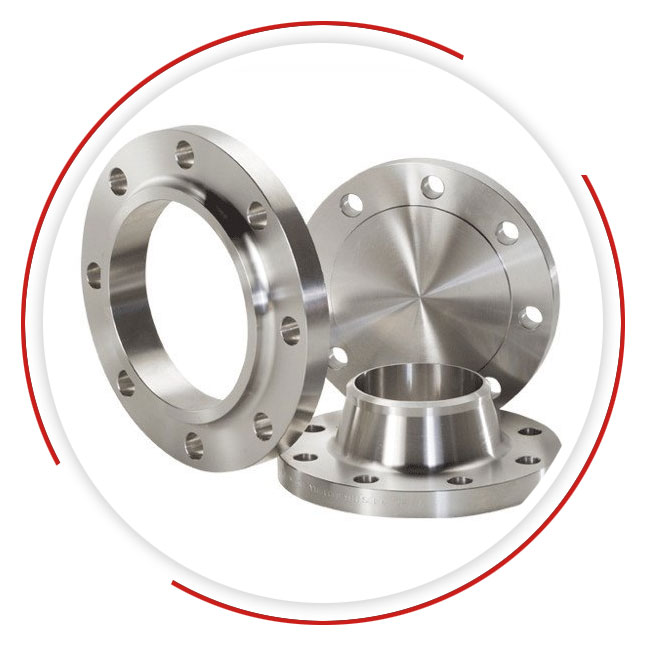

Stainless Steel Flanges offer excellent corrosion resistance and durability, suitable for harsh environments.

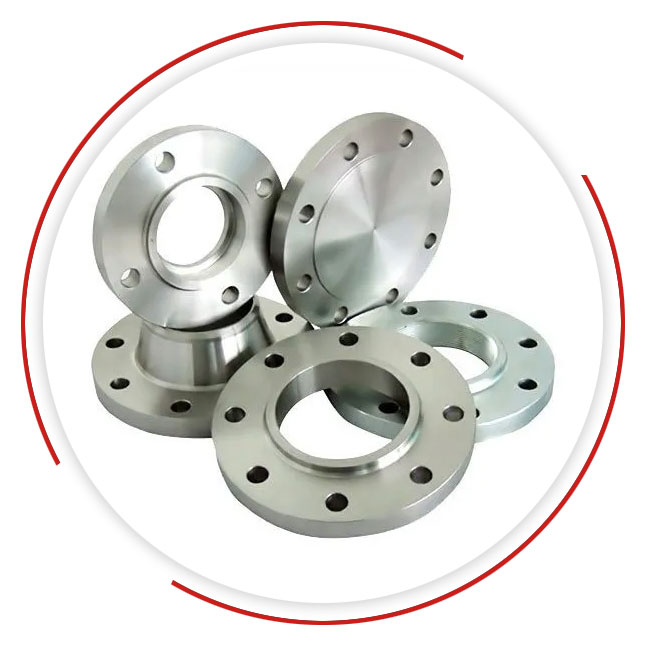

Alloy Steel Flanges provide enhanced strength and resistance to high temperatures and pressures.

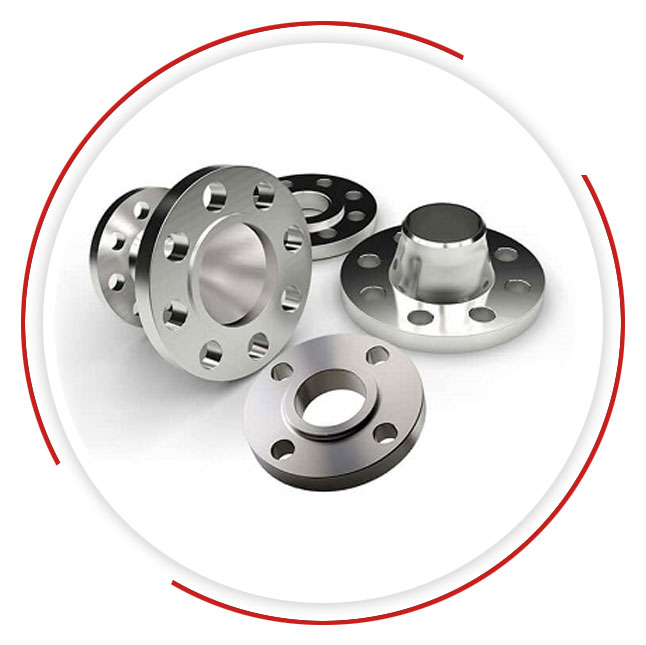

Inconel Flanges are resistant to extreme temperatures and corrosion, making them ideal for critical environments.

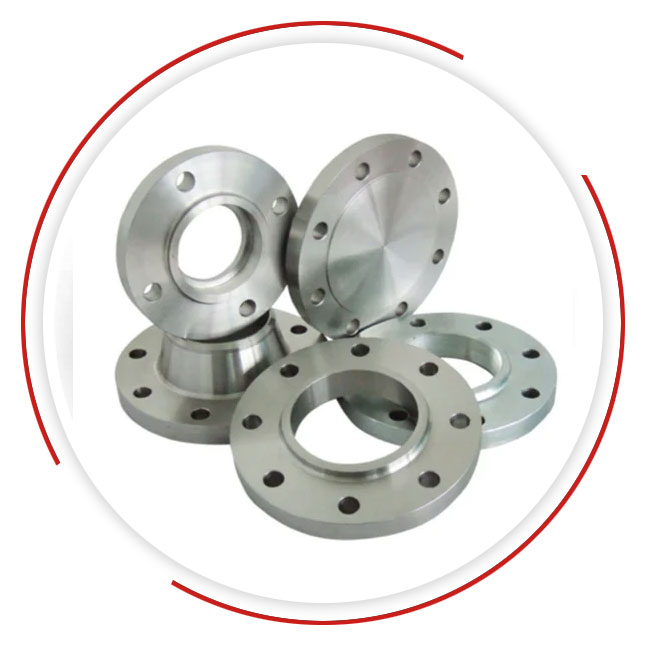

Monel Flanges offer exceptional resistance to corrosion, especially in marine environments.

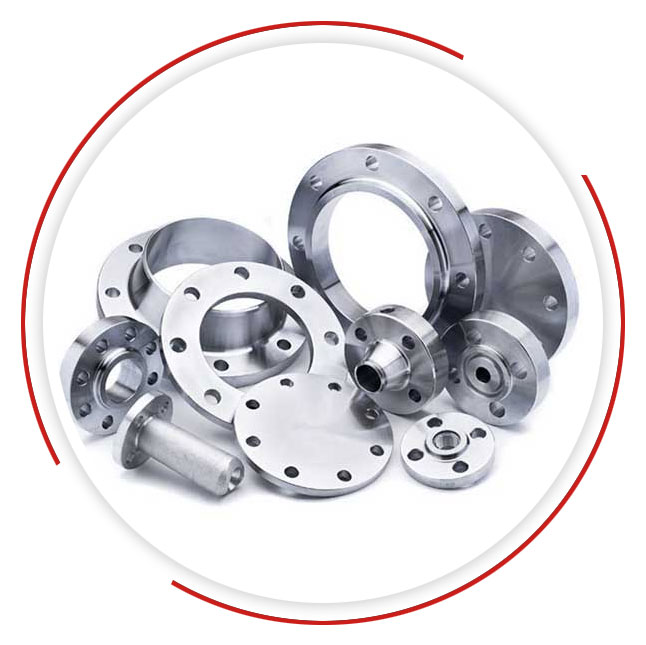

Duplex Steel Flanges combine the benefits of stainless steel and carbon steel, offering superior strength and corrosion resistance.

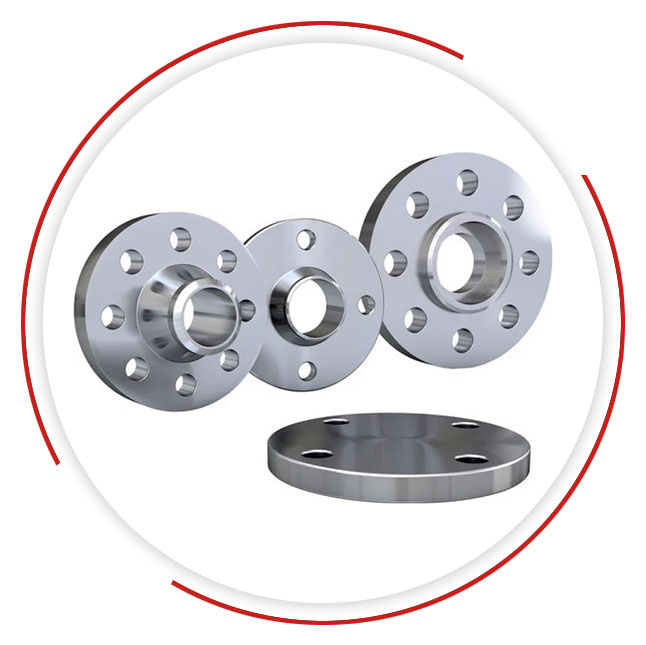

Super Duplex Flanges excel in highly corrosive and high-pressure environments, ensuring long-lasting performance.
Flanges are manufactured to comply with globally recognized standards, ensuring quality, safety, and compatibility. Here’s a quick breakdown:
| Standard | Purpose |
| ASME B16.5 | Covers pipe flanges and flanged fittings. |
| ASME B16.47 | For large-diameter steel flanges. |
| ASME B16.11 | Covers forged fittings (socket weld/threaded). |
| ASME B16.36 | Orifice flanges for flow measurement. |
| MSS-SP-44 | High-pressure steel pipeline flanges. |
The material of your flange impacts its performance in specific environments. Here are some popular choices:
| Material | Key Features | Applications |
| Stainless Steel | Corrosion-resistant, durable. | Marine, chemical industries. |
| Carbon Steel | High strength, cost-effective. | Oil & gas, structural piping. |
| Duplex Steel | Excellent corrosion resistance. | Desalination, storage tanks. |
| Inconel | Extreme heat and corrosion resistance. | Aerospace, nuclear power. |
| Monel | Superior in marine environments. | Offshore drilling, shipbuilding. |
| Alloy Steel | High-temperature and wear resistance. | Power plants, refineries. |
Looking for flanges that deliver exceptional performance, reliability, and value? Kwality Steelage is your trusted partner. Contact us today for custom flange solutions designed to meet your exact needs. Let’s build a stronger, safer piping system together!
